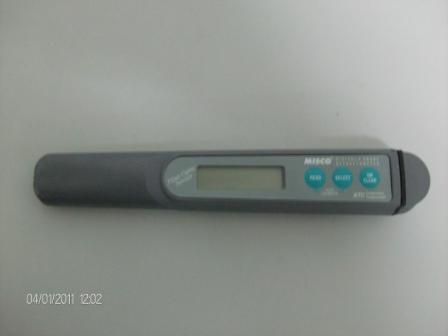

Refractometro portátil multi-gama : RI, BRIX, SP.GR, SALIN, %AL
|
|
|
With the MISCO DFR, people don’t have to bring the instrument or undesirable liquids near the face and eyes, while squinting into a microscope-like eyepiece.
It’s easy to use as a digital thermometer and processes precise digital read-outs instantly. There is no need to decipher small scale divisions.
Custom Programmability & Up to Five Scales per Instrument
Each MISCO DFR comes equipped with up to five different scales, selected by the customer out of hundreds of possible options. The refractometer is specifically programmed for whatever liquids are being measured, whether the user is testing the concentration of sugar, blood plasma, urine, glycol, salinity, alcohol or virtually any other water-soluble fluid.
If the application requires a scale not found among those already developed, MISCO engineers will create a custom scale to measure the property of the particular fluid the user needs to test. Additionally, the instrument can be returned to MISCO for reprogramming if the customer’s needs change in the future.
Prior to the MISCO DFR, it was necessary to create arcane conversion tables in order to translate Brix or refractive index measurements into usable values. This new, groundbreaking instrument has the ability to directly read a liquid’s physical properties (refractive index, specific gravity, percent concentration by volume or weight, freezing point, etc.). Since the DFR offers a multitude of options, readings can be taken directly
in the desired units of measure, without the need for a conversion table.
In addition, the DFR’s exceptionally large refractive index (1.3280 to 1.4330 R.I.) and Brix range (0 to 56 Brix) accommodate virtually every type of fluid measurement.
In setting the upper limit of the refractive index and Brix scales, we questioned customers and found that 1.4330 R.I. and 56 Brix limits would satisfy 99% of their measurement needs.
Automatic Calibration and Temperature Compensation
MISCO DFR’s automatically calibrate themselves to water and are designed for immediate use without adjusting settings or turning screws. They also feature automatic, nonlinear temperature compensation from 32° to 122°F (0° to 50° C) and multiple temperature compensation channels.
Other key features and benefits include:
• Traceable Instrument Calibration & Serial Number: The calibration of each instrument is traceable through an unbroken chain to the National Institute of Standards. Each MISCO DFR also bears a unique, irremovable serial number that is laser-etched into the body of the device.
• Protective Sapphire Window Covering Sensor: The fiberoptic sensor is protected with an ultra-durable window made of sapphire, the second-hardest material next to diamond.
• Custom Storage Case: Each instrument comes in its own custom case, lined with foam padding. The case contains a screwdriver for changing the battery, compartment for a spare battery and quick reference guide adhered to the inside lid of the instrument case.
• Detailed Instructions/One-Year Factory Warranty: In addition to the quick reference guide, a comprehensive owner’s manual, complete with diagrams, comes with each unit. Instructions also are listed on the rear label of the device itself.
• High-Impact, Chemical-Resistant Plastic Body: The MISCO DFR has a durable, plastic body that is resistant to water, splashes and chemicals, and is capable of standing up to harsh industrial environments.
• Long Battery Life: The unit operates on a 9-volt, transistor radio battery, good for up to 60 hours of use and is easy to replace. Each instrument comes with a battery already in the unit, as well as a spare battery in the instrument case. MISCO DFR features an automatic shut-off mechanism to conserve battery
|
|
|
